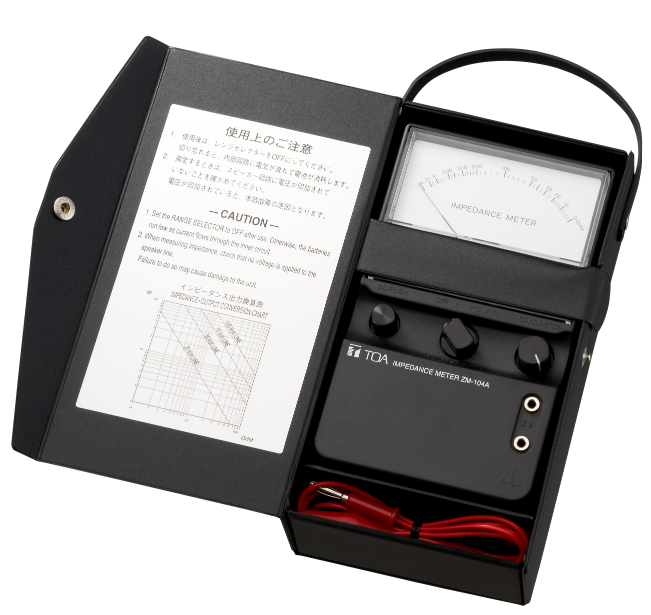

Toa ZM-104A Impedance Meter

$869.00 Inc GST

Toa ZM-104A Impedance Meter

$869.00 Inc GST

The TOA ZM-104A Impedance Meter can measure the rough impedance value of speaker lines easily in the same manner as a circuit tester measures resistance.

1 in stock

SKU: ZM-104A Category:

Free NZ shipping on all orders over $500

  • Order yours before 12pm for same day dispatch In Stock Items Only
Guaranteed Safe Checkout

Description

The TOA ZM-104A Impedance Meter can measure the rough impedance value of speaker lines easily in the same manner as a circuit tester measures resistance.

Specification
Power Source R6 × 4 (1.5 V DC × 4)
Current Consumption 39 mA
Reading Direct reading meter, unit: Ω
Measurement Range × 1 range: 5 Ω – 1 kΩ
× 10 range: 50 Ω – 10 kΩ
× 100 range: 500 Ω – 100 kΩ
Oscillation Frequency 1 kHz, ±10 %
Battery Life When Continuously Used × 1 range: 30 h
× 10 range and × 100 range: 60 h
Operating Temperature -5 ℃ to +40 ℃ (23 ゜F to 104 ゜F)
Dimensions 122 (W) × 222 (H) × 70 (D) mm (4.80″ × 8.74″ × 2.76″) (carrying case)
110 (W) × 180 (H) × 58 (D) mm (4.33″ × 7.09″ × 2.28″) (unit only)
Finish ABS resin, black
Weight 730 g (1.61 lb) (including carring case, without batteries)
Accessory Test leads …1 set
Measurement Category CAT I
