Description

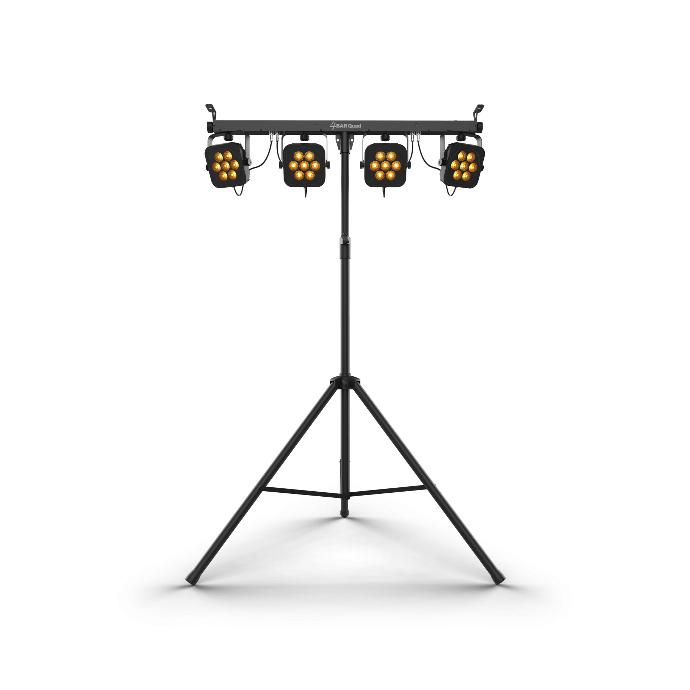

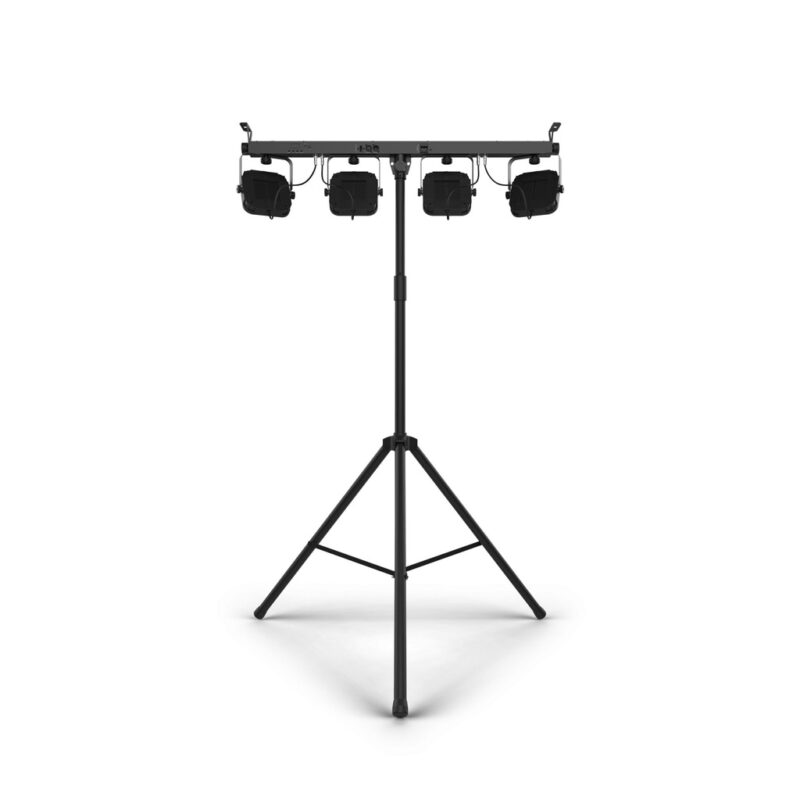

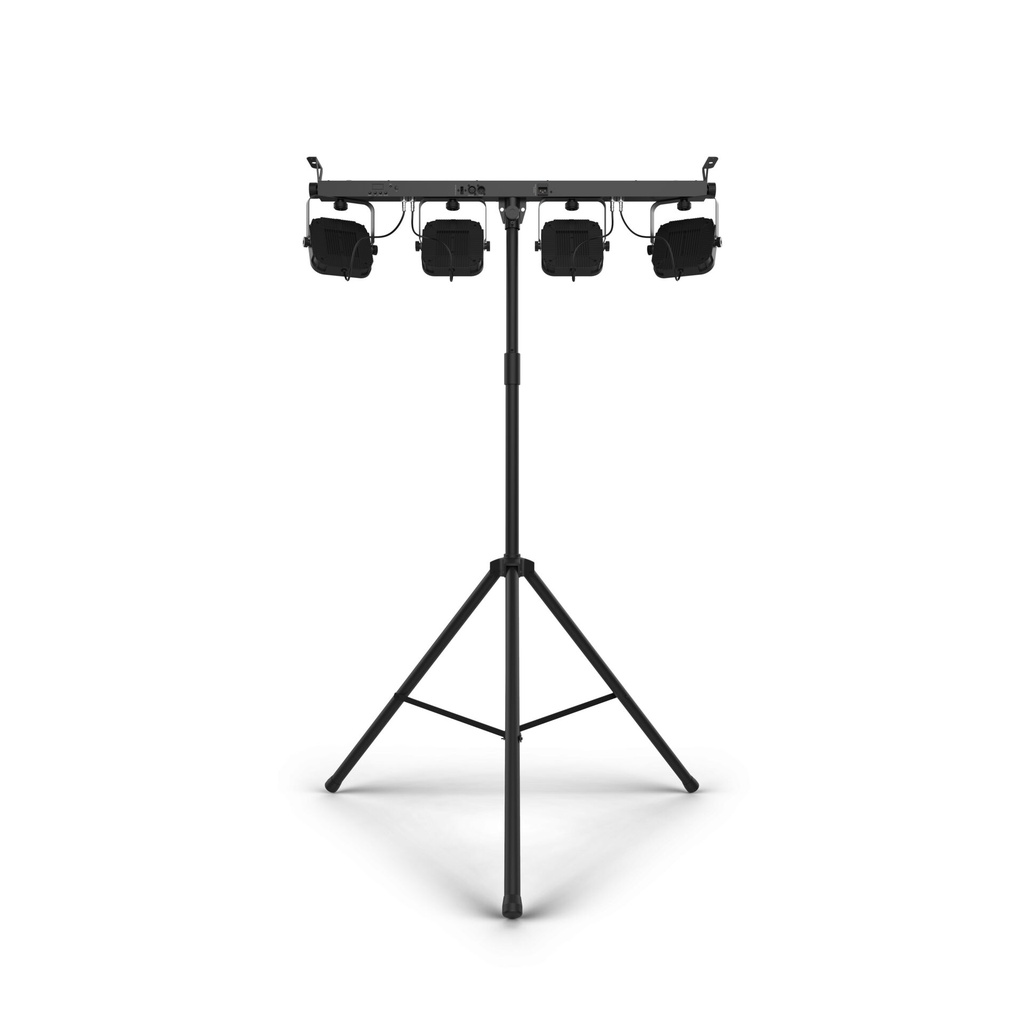

4BAR Quad is a complete wash lighting solution fitted with high-intensity quad-color (RGBA) LEDs that can be controlled wirelessly out of the box via the included footswitch or optional IRC-6 controller. Generate natural, warm color temperatures with punchy amber and achieve total area coverage by individually positioning the 4 adjustable pods. 4BAR Quad is compatible with D-Fi USB for wireless Master/Slave or DMX programming. A convenient tripod and carry bag are included for effortless setup and quick tear down. 4BAR Quad safely attaches to truss with built-in bolts, easily increasing mounting options.
Highlights
-
Complete wash lighting solution fitted with high-intensity, quad-color (RGBA) LEDs
-
Generate a broad spectrum of colors and achieve natural-looking color temperatures with punchy amber LEDs
-
Out of the box wireless control with included footswitch or optional IRC-6 controller
-
Easily set up and tear down in minutes with the included tripod stand and carrying bags
-
D-Fi™ USB compatibility for wireless Master/Slave or DMX control
-
Achieve total room or stage coverage with 4 individually adjustable heads
-
Increase mounting options by safely mounting to truss using built-in bolts
Specifications
- DMX Channels:4, 6 or 19
- DMX Connectors:3-pin XLR
- Max Unobstructed Distance:(foot switch): 100 ft (30.5 m)
- Light Source:28 LEDs (quad-color RGBA) 3.5 W, (1.3 A), 50,000 hours life expectancy
- Strobe Rate:0 to 20 Hz
- PWM Frequency:1310 Hz
- Beam Angle:14°
- Field Angle:23°
- Operating Frequency:(D-Fi): 2.412 to 2.484 GHz
(foot switch): 433 MHz - Fits Tripod Size:1.5 in (36.80 mm)
- Illuminance:2,353 lux @ 2 m (per pod)
- Input Voltage:100 to 240 VAC, 50/60 Hz (auto-ranging)
- Power and Current:80 W, 1.2 A @ 120 V, 60 Hz
78 W, 0.6 A @ 230 V, 50 Hz - Weight:12.2 lb (5.5 kg)
(Controller): 1.2 lb (0.6 kg) - Size:45.7 x 2 x 12 in (1186 x 50.8 x 305 mm)
(Controller): 16.5 x 5.2 x 1.5 in (419 x 132 x 38 mm) - Approvals:CE, FCC
- Footswitch battery: 9 V
- Stand Height: 7 ft 4 in (2.2 m)
- Bracket Mounting Hole: M10 (1.5 mm pitch)
- Optional Controllers: IRC-6, D-Fi USB
WHAT’S INCLUDED
- 4BAR Quad
- Power cord
- Carrying bag
- Tripod
- Tripod Carry bag
- Wireless Footswitch
- Quick Reference Guide
