Description
This is 1m Length

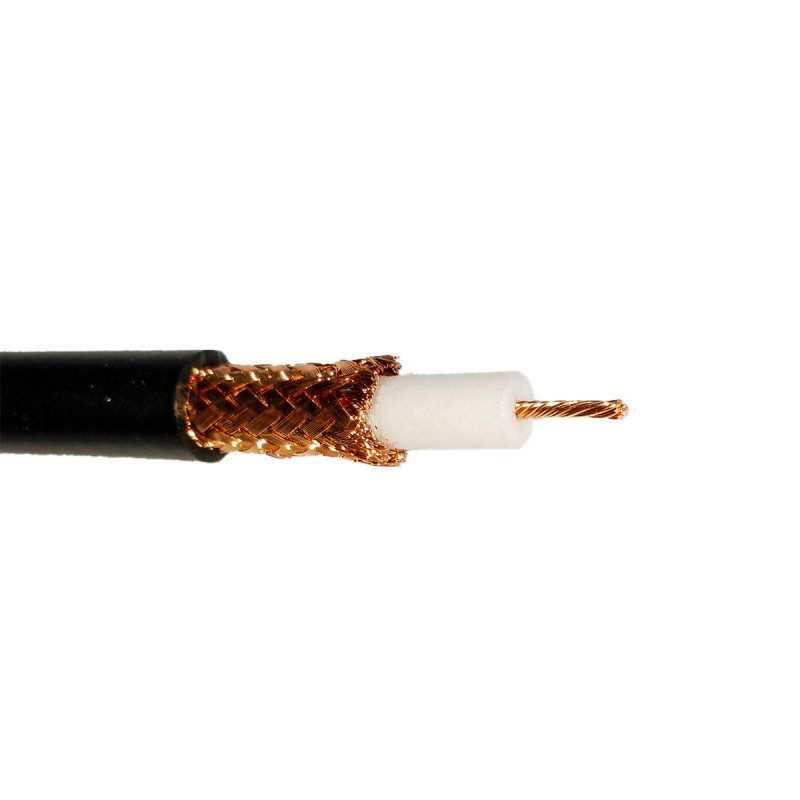

Canare L-4.5CHWS Extra Flexible RG6 18AWG Stranded HD-SDI Coax – Black 1m
Overview
Flexible HD Coax for 3G-SDI, HD-SDI for Mobile applications
Description
Canare’s new Flexible HD Coax, L-4.5CHWS for 3G-SDI, HD-SDI for Mobile applications. Stranded conductors and double-braided shield offering excellent flexibility. Perfect for mobile applications. Minimal bend memory, ideal for use on cable reels.
L-CHWS HD-SDI Coax Features
- Center conductor: 18 AWG stranded
- Double Braided Shield
- Outer Diameter: 7.2mm
- Ideal for mobile applications
- Max transmission distance: 3G-SDI 60m, HD-SDI 87m
Applications
- HDTV Upgrades
- Broadband Facilities
- HD-SDI SMPTE 292 1.485 Gbps : 285 ft. (87 m)
- HD-SDI SMPTE 424 2.97 Gbps : 295 ft. (90 m)
- 12G-SDI SMPTE 2082.1 11.88 Gbps : 164 ft. (50 m)
