UNA6IO-BT – Overview
Attero Tech

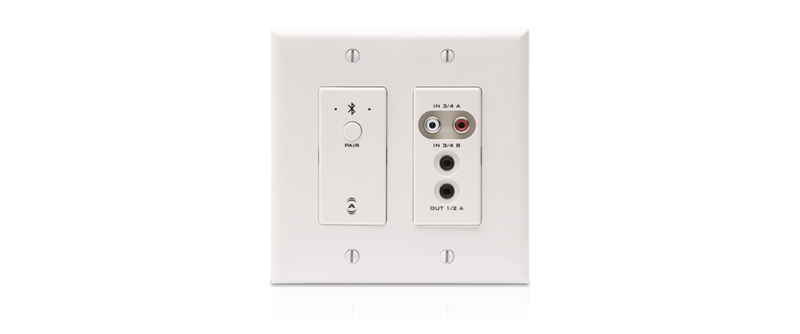

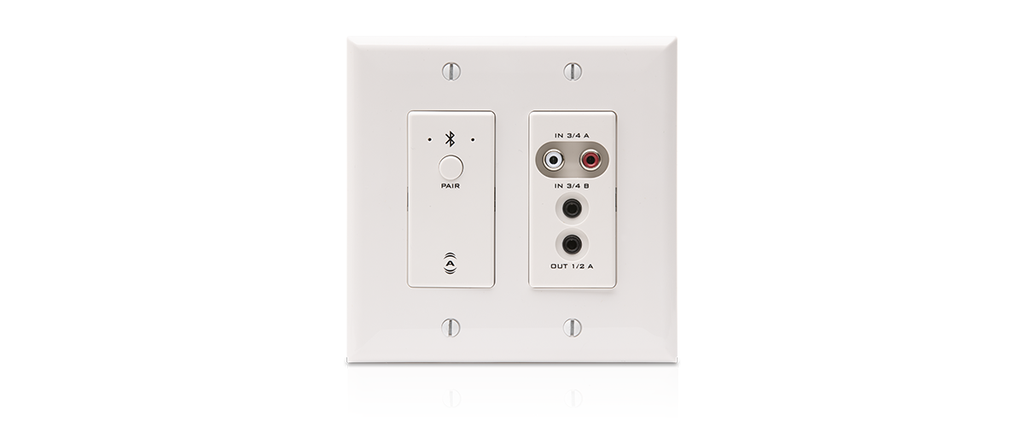

The unA6IO-BT AES67 audio interface with Bluetooth is a cost effective multi-IO wall box. The unA6IO-BT features stereo Bluetooth wireless audio input connectivity along with two RCA line level inputs and a 3.5mm TRS line level input. A 3.5mm TRS line level output on the front is also included.
The unA6IO-BT is designed to fit into most dual gang US junction boxes and is PoE enabled, so all connectivity (power, control and audio data) is provided by a single CAT-5e/6 cable. The unA6IO-BT’s unique mix of consumer style wired and wireless connectivity allows easy connection of a wide variety of user devices to an AES67 network – with no concerns about ground loops or other audio problems common with consumer devices.
Features:
Simple pairing one button pairing/connect process for standalone operation with LED indication of connection status
Defeatable pairing button for restricted use applications with 3rd party control systems
Customizable Bluetooth friendly name in applications with co-located unA6IO-BTs
Compatible with most smartphones, Apple iPads, and Android tablets
Two RCA and one 3.5mm stereo input
One 3.5mm stereo output on the front. All outputs feature software controlled volume
802.3af compliant PoE powered to work with any compliant PoE network switch
RCA inputs and 3.5mm input (carried as stereo) can be selected via software, individually or in combination, as an audio flow
Bluetooth audio is carried as stereo onto the AES67 network
AES67 is compatible with all QSC Core DSPs
Specifications:
Bluetooth Profile: A2DP – Stereo audio is streamed from a Bluetooth device and onto the AES67 network
RCA and 3.5mm Inputs: RF filtered line level, input source software selectable
Color: Black
Maximum Input Levels (3.5mm/RCA): +12dBu
Output Volume Range: 0dB to -60dB in 1dB steps, software selectable
Output Noise:
3.5mm Output: RF filtered line level
Maximum Output Level(3.5mm): +12dBu
System THD: <.02% at any gain, input signal 3dB below maximum (wired I/O only) Certifications: FCC 47CFR Parts 15B and 18 (Class A), EN 55011, ICES-003, CE (EN55022 Class A and EN55024 Class A) Dimensions (W x H x D): 3.54" x 4.2" x 2.0" Operating Temperature: 0°C - 40°C
